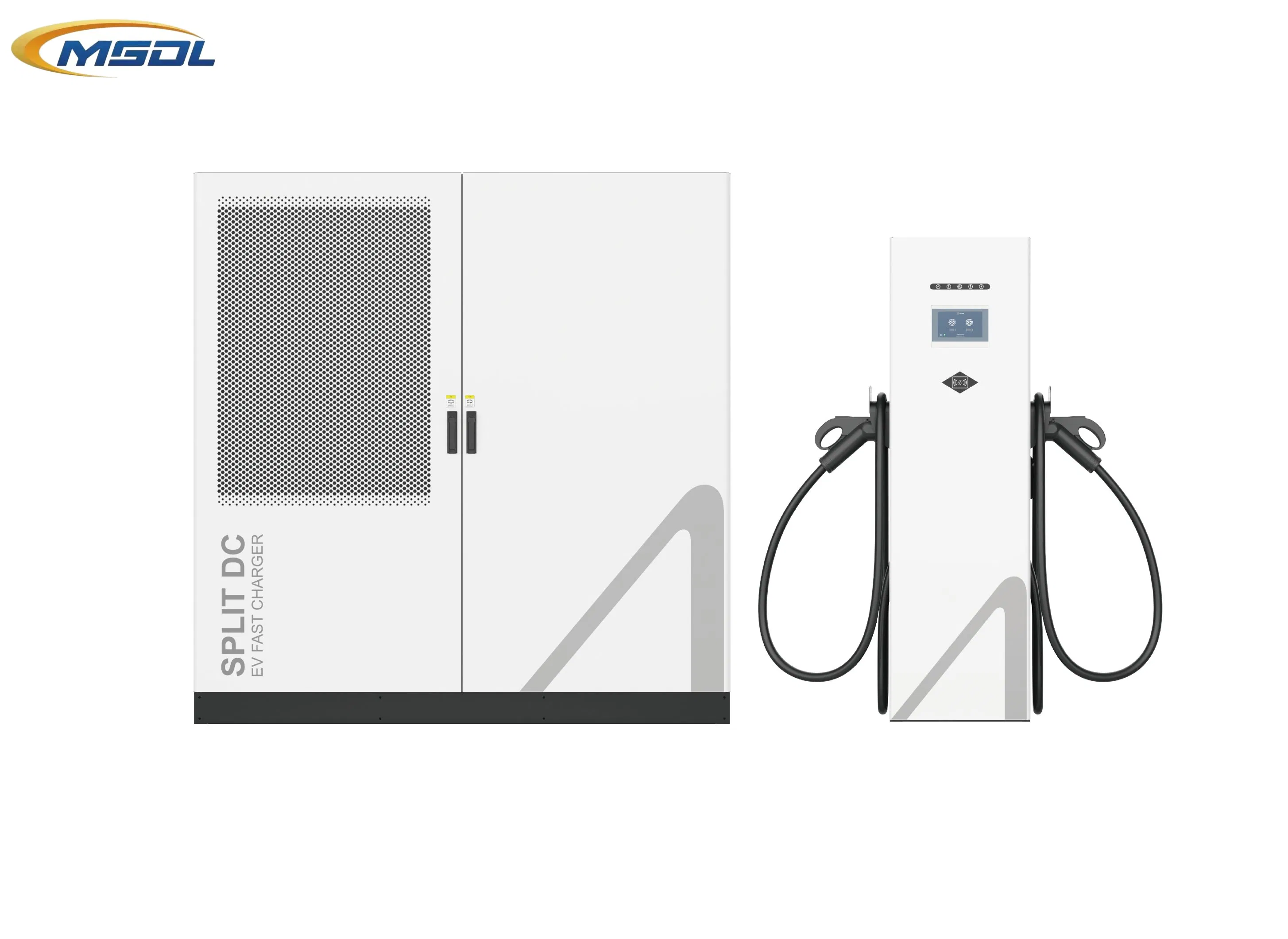

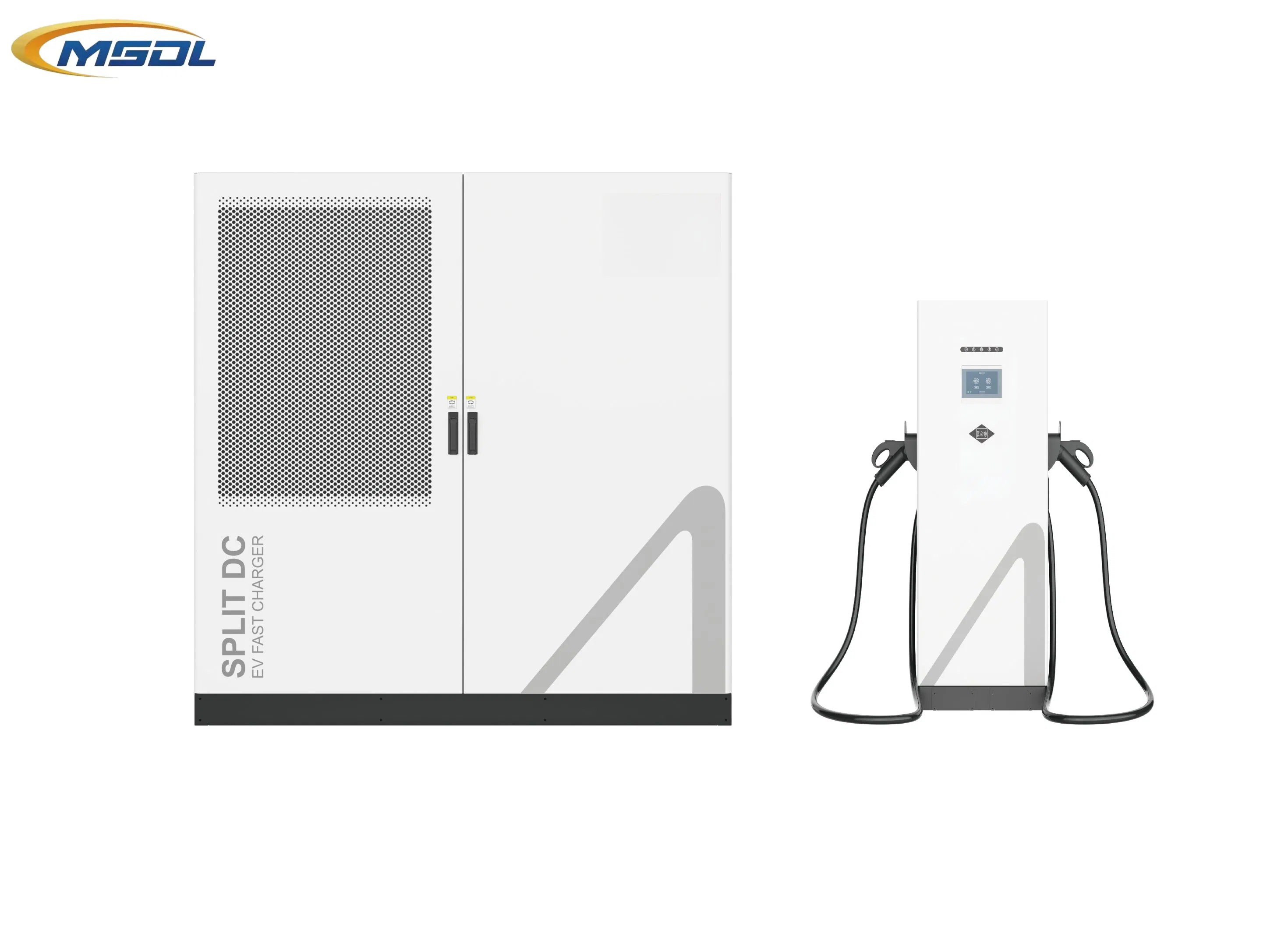

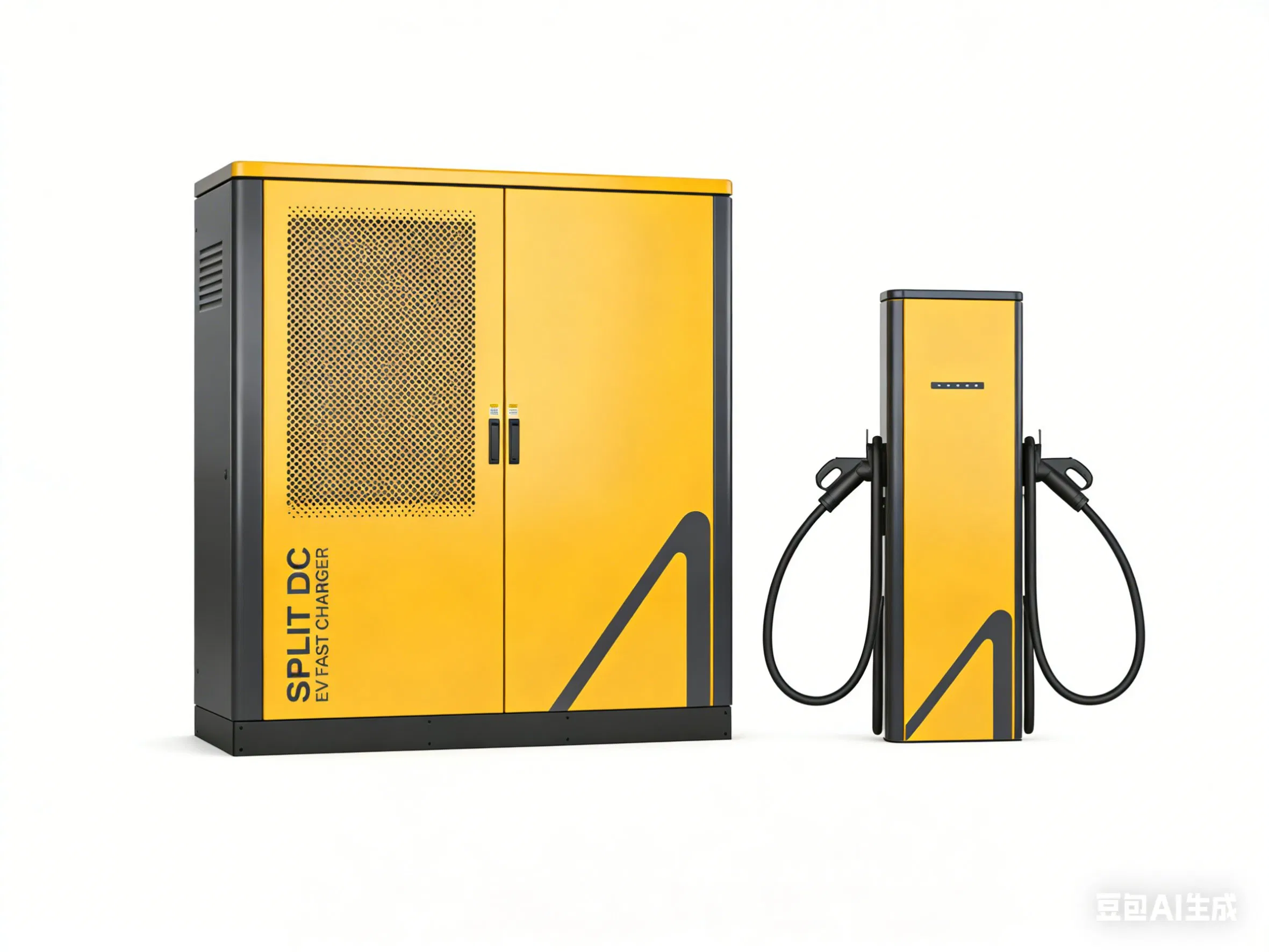

960kw Ultra-Fast DC Charging Station Heavy-Duty Electric Car Charger Pile for Public Fast Charging Stations Supporting Buses and Heavy Trucks

Still deciding? Get samples of $ !
Request Sample

Product Description

Ultra-Fast DC Charging Station Banner
i

Basic Specifications

Location:Public Use
Interfaces:One Pile with Multiple Charges
Start Mode:Credit Card, Mobile Remote, RFID
Dimensions:900mm x 700mm x 1900mm
Weight:440kg
Cable Length:5m-7m
Connectors:GBT, CCS2, CCS1, CHAdeMO, NACS
Input Voltage:400VAC / 480VAC (3P+N+PE)
Output Voltage:200 - 1000VDC
Rated Power:240-480kW
Protection:IP54 IK10
Operating Temp:-30°C to 75°C
✓

Product Description

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Next-Generation Ultra-High-Performance DC Charging Station: Empowering the Future of Heavy-Duty Electrification. As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent. Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet this era's demands.

The overall form is bold and steady, with a rugged and resolute style. Clean, sharp lines and distinct angular contours exude industrial strength. It provides outstanding physical protection and conveys a sense of dependable reliability. Whether installed at busy highway supply stations or deployed in complex environments like mines and ports, it exudes professional character.

This product adopts a forward-thinking modular and highly scalable design. It comes standard with 12 high-efficiency power module slots, offering exceptional scalability smoothly expanding up to an impressive 480kW. This "configure-as-needed" model effectively protects investments and avoids the risk of rapid obsolescence.

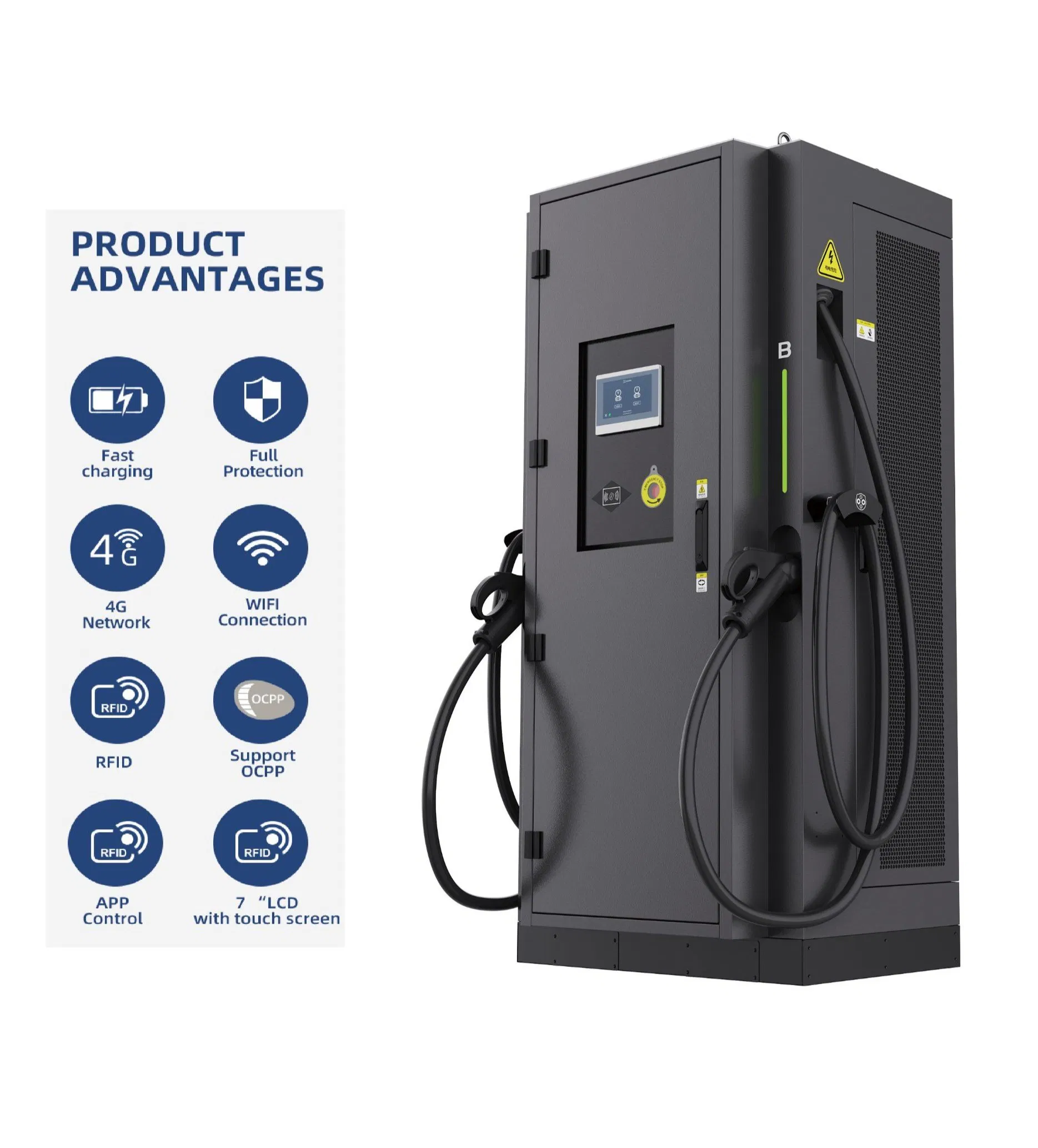

Charging Station Front View
Charging Station Side View

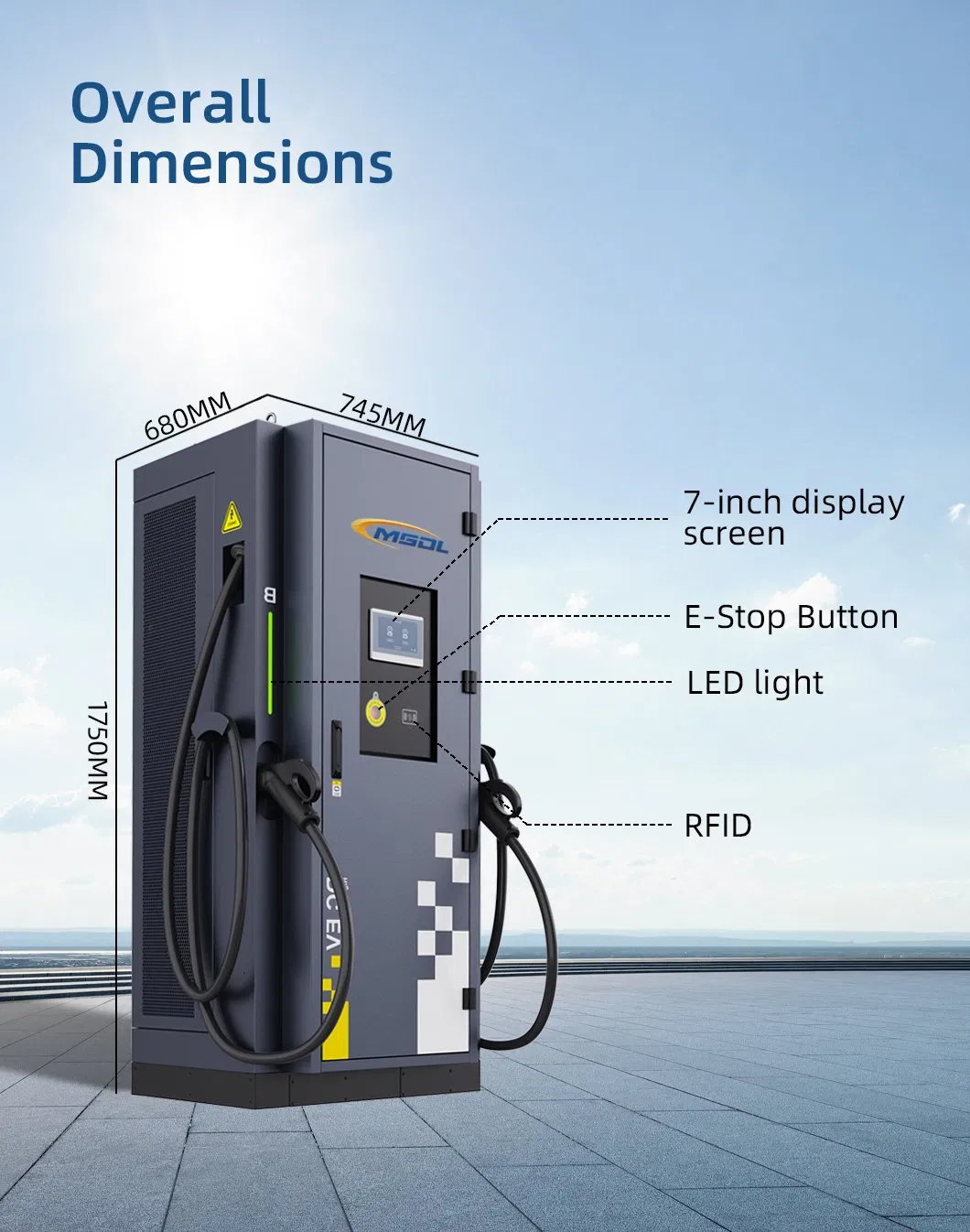

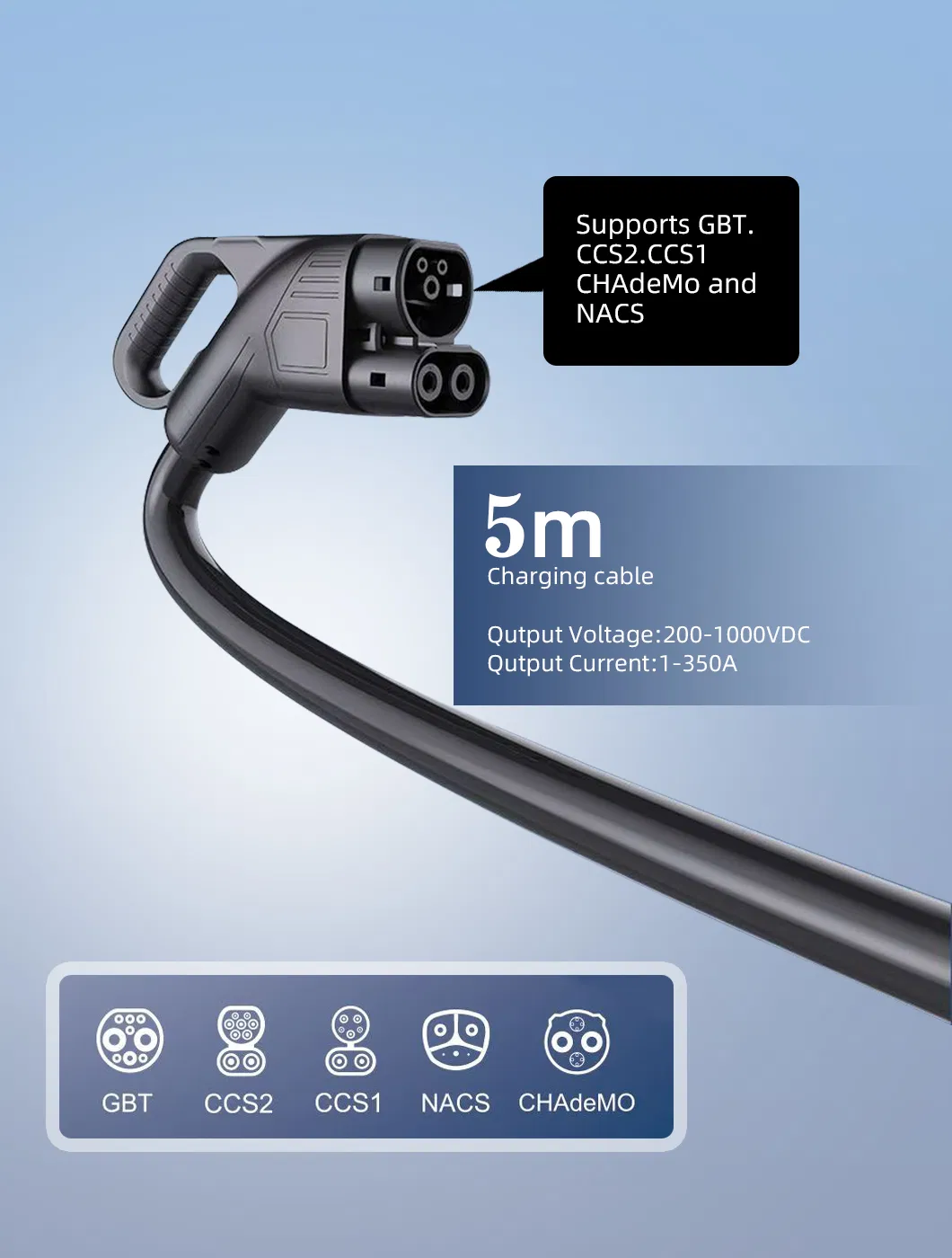

Charging Interface Detail
Internal Components
Display Screen Detail
⚙

Technical Specification

Category Parameter Details
Structure Dimensions 900mm x 700mm x 1900mm
Weight 440kg
Connectors GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical Input Voltage 400VAC / 480VAC (3P+N+PE)
Output Voltage 200 - 1000VDC
Rated Power 240-480kW
Peak Efficiency ≥96%
Functional Display 7’’ LCD with touch screen
Access Control RFID (ISO/IEC 14443A/B) / POS machine
Communication WIFI / Ethernet / 4G (Optional)
Environment Operating Temp -30°C to 75°C
Protection IP54 / IK10

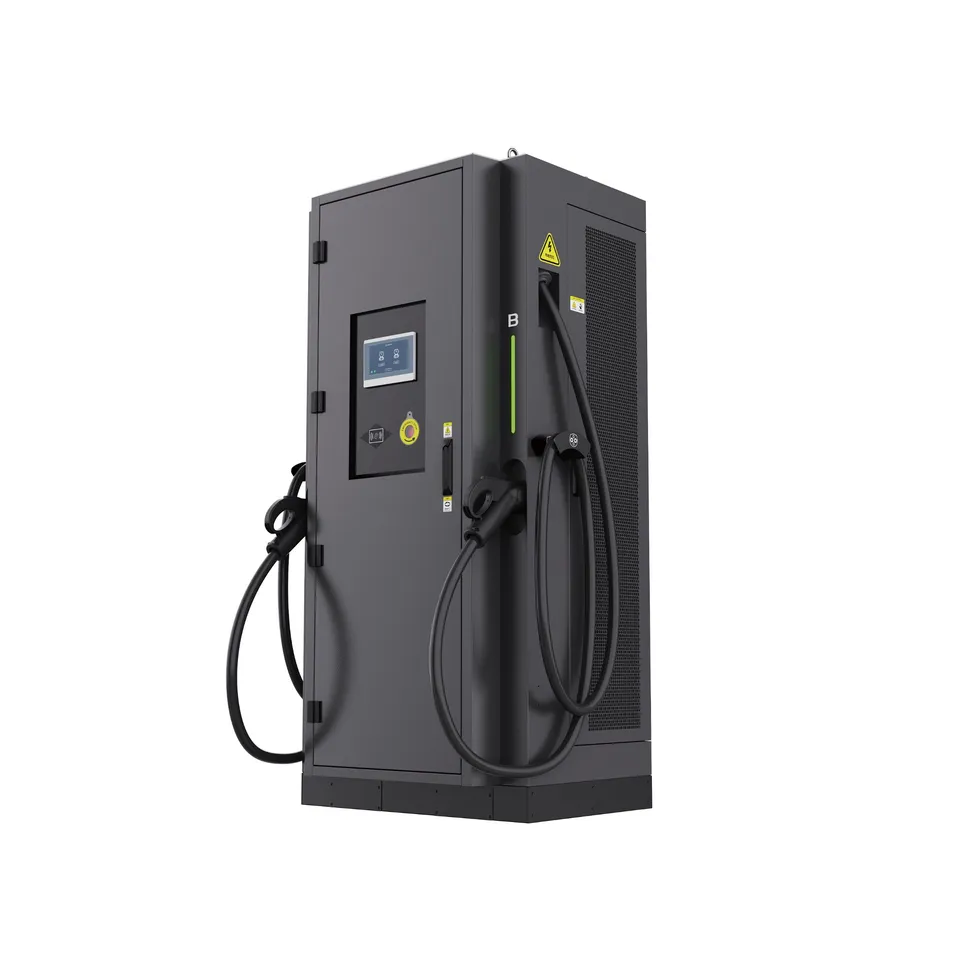

Product Layout 1

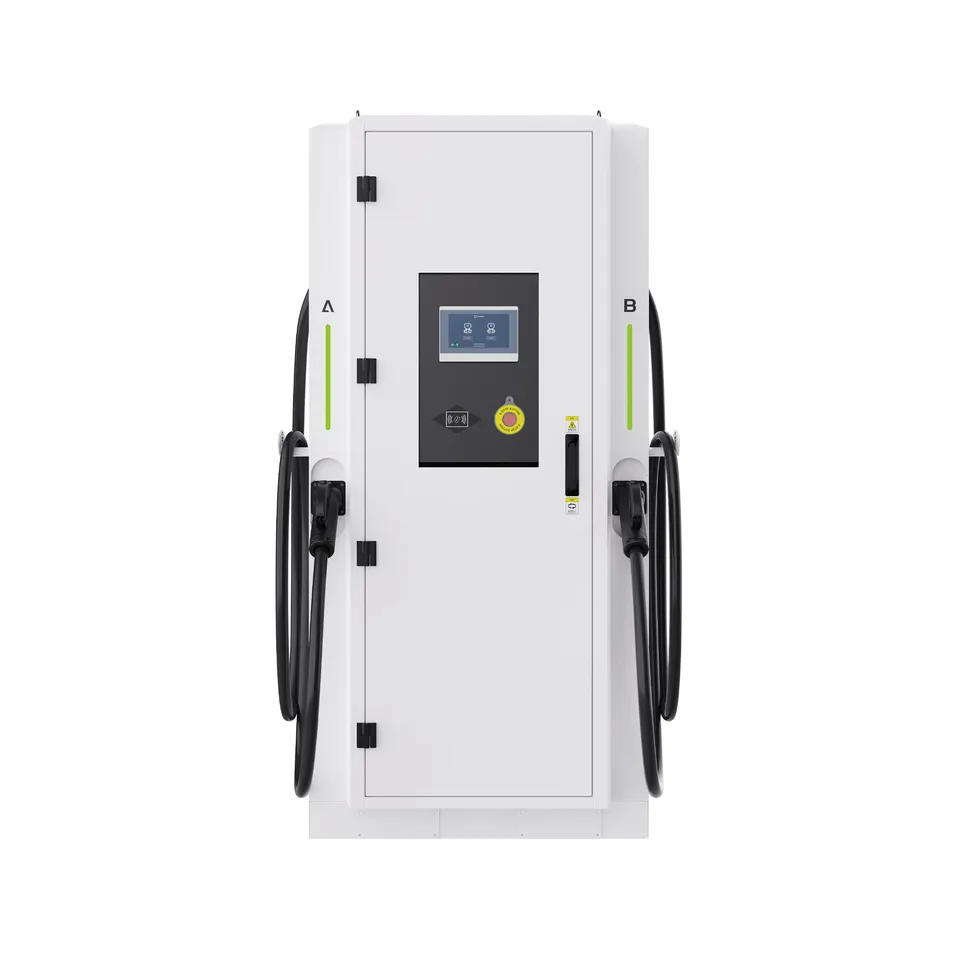

Product Layout 2

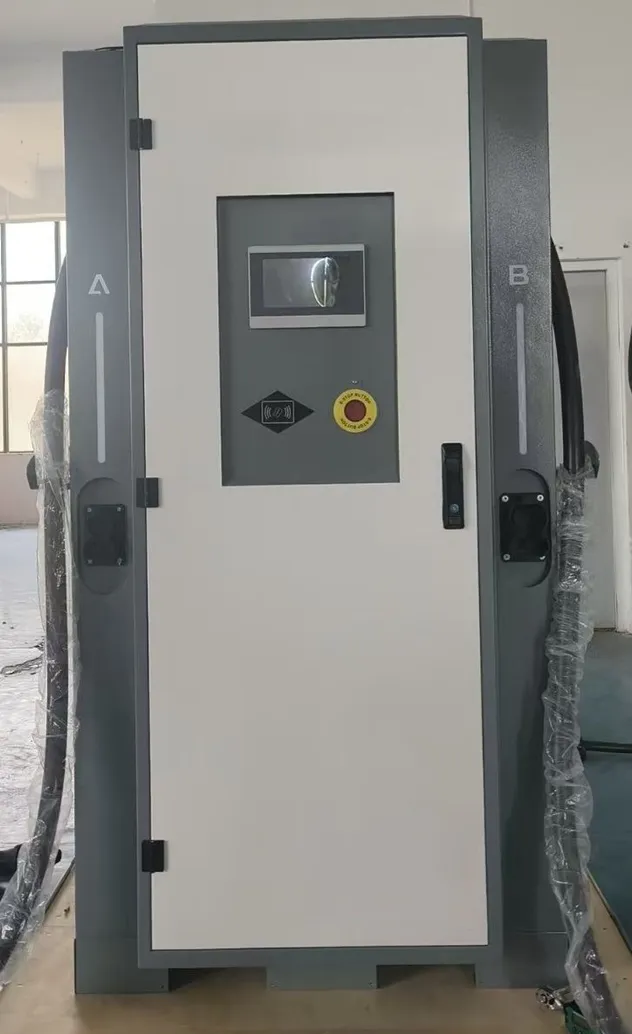

Vertical view 1

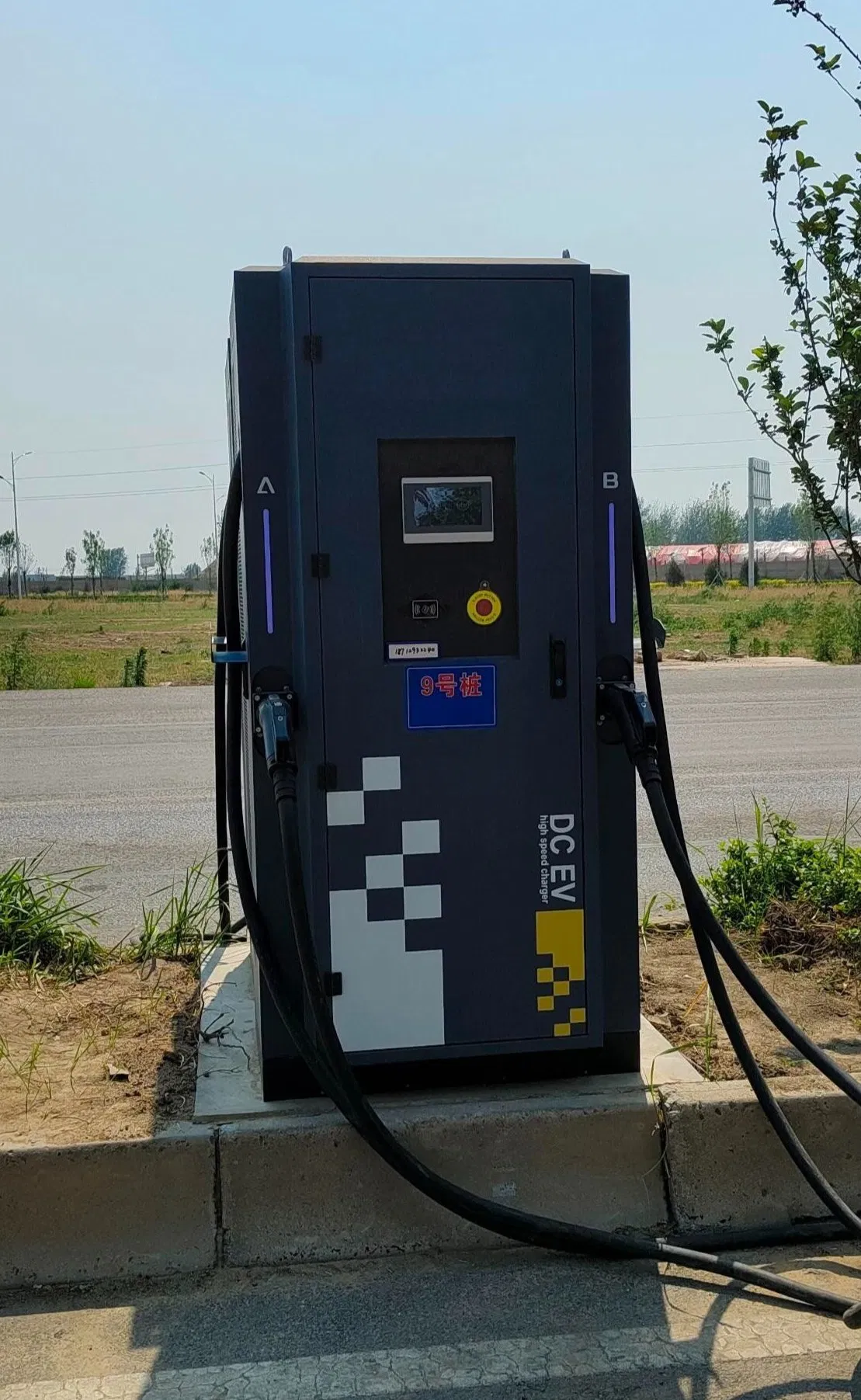

Vertical view 2

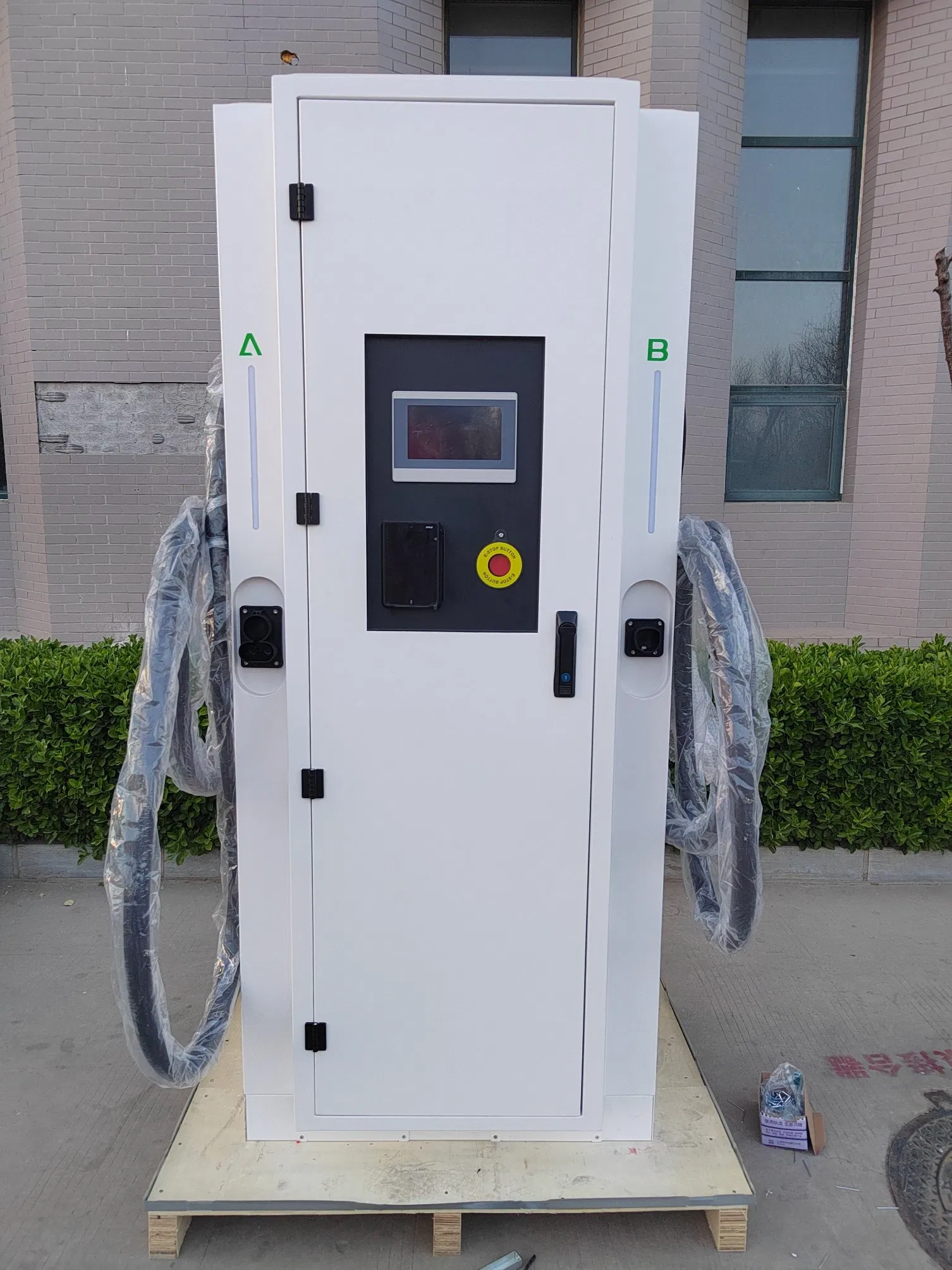

Vertical view 3
Ultra-Fast Charging Bottom Banner
?

Frequently Asked Questions

Q1: What is the maximum power output of this charging station?
A: The station features a modular design that can be scaled from 240kW up to an impressive 480kW, making it ideal for heavy-duty trucks and buses.
Q2: Which charging connector standards are supported?
A: It is highly compatible and supports major international standards including GBT, CCS1, CCS2, CHAdeMO, and NACS.
Q3: Is the unit suitable for extreme outdoor environments?
A: Yes, with an IP54 ingress protection rating and IK10 impact resistance, it is designed to operate in temperatures ranging from -30°C to 75°C.
Q4: What payment and access control methods are available?
A: The station supports RFID cards (ISO/IEC 14443A/B), mobile remote operation, and can be equipped with an optional POS machine for credit card payments.
Q5: How efficient is the power conversion?
A: The charging station is highly efficient, achieving a peak efficiency of ≥96% with a power factor greater than 0.99.
Q6: What safety protections are built into the system?
A: It includes comprehensive safety features such as overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with an emergency stop button.
